INTRODUCING ALKENES


This is an introductory page about alkenes such as ethene, propene and the rest. It deals with their formulae and isomerism, their physical properties, and an introduction to their chemical reactivity.


What are alkenes?

Formulae

Alkenes are a family of hydrocarbons (compounds containing carbon and hydrogen only) containing a carbon-carbon double bond. The first two are:

etheneC2H4
propeneC3H6

You can work out the formula of any of them using: CnH2n

The table is limited to the first two, because after that there are isomers which affect the names.


Isomerism in the alkenes

Structural isomerism

All the alkenes with 4 or more carbon atoms in them show structural isomerism. This means that there are two or more different structural formulae that you can draw for each molecular formula.

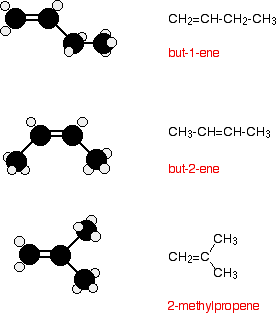

For example, with C4H8, it isn't too difficult to come up with these three structural isomers:


Note:  If you aren't confident about naming organic compounds, the various ways of drawing organic compounds, or structural isomerism, then you really ought to follow these links before you go on.

Use the BACK button on your browser to return to this page.



There is, however, another isomer. But-2-ene also exhibits geometric isomerism.

Geometric (cis-trans) isomerism

The carbon-carbon double bond doesn't allow any rotation about it. That means that it is possible to have the CH3 groups on either end of the molecule locked either on one side of the molecule or opposite each other.

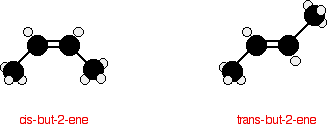

These are called cis-but-2-ene (where the groups are on the same side) or trans-but-2-ene (where they are on opposite sides).

Cis-but-2-ene is also known as (Z)-but-2-ene; trans-but-2-ene is also known as (E)-but-2-ene. For an explanation of the two ways of naming these two compounds, follow the link in the box below.


Note:  If you aren't confident about geometric isomerism, then it is essential that you follow this link before you go on. This is especially important if you find the two sorts of naming confusing.

Use the BACK button on your browser to return to this page.



Physical properties of the alkenes

Boiling Points

The boiling point of each alkene is very similar to that of the alkane with the same number of carbon atoms. Ethene, propene and the various butenes are gases at room temperature. All the rest that you are likely to come across are liquids.

In each case, the alkene has a boiling point which is a small number of degrees lower than the corresponding alkane. The only attractions involved are Van der Waals dispersion forces, and these depend on the shape of the molecule and the number of electrons it contains. Each alkene has 2 fewer electrons than the alkane with the same number of carbons.


Note:  If you aren't sure about Van der Waals forces, then you should follow this link before you go on.

You will find the boiling points of the alkanes explained in some detail on the introductory alkanes page. Everything said there applies equally to the alkenes.

You will find the way geometric isomerism affects melting and boiling points explained towards the bottom of the page you get to by following this link.

Use the BACK button on your browser to return to this page.




Solubility

Alkenes are virtually insoluble in water, but dissolve in organic solvents.


Note:  The reasons for this are exactly the same as for the alkanes. You will find a detailed explanation on the introductory alkanes page.

Use the BACK button on your browser to return to this page.




Chemical Reactivity

Bonding in the alkenes

We just need to look at ethene, because what is true of C=C in ethene will be equally true of C=C in more complicated alkenes.

Ethene is often modelled like this:

The double bond between the carbon atoms is, of course, two pairs of shared electrons. What the diagram doesn't show is that the two pairs aren't the same as each other.

One of the pairs of electrons is held on the line between the two carbon nuclei as you would expect, but the other is held in a molecular orbital above and below the plane of the molecule. A molecular orbital is a region of space within the molecule where there is a high probability of finding a particular pair of electrons.

In this diagram, the line between the two carbon atoms represents a normal bond - the pair of shared electrons lies in a molecular orbital on the line between the two nuclei where you would expect them to be. This sort of bond is called a sigma bond.

The other pair of electrons is found somewhere in the shaded part above and below the plane of the molecule. This bond is called a pi bond. The electrons in the pi bond are free to move around anywhere in this shaded region and can move freely from one half to the other.


Note:  This diagram shows a side view of an ethene molecule. The dotted lines to two of the hydrogens show bonds going back into the screen or paper away from you. The wedge shapes show bonds coming out towards you.


The pi electrons are not as fully under the control of the carbon nuclei as the electrons in the sigma bond and, because they lie exposed above and below the rest of the molecule, they are relatively open to attack by other things.


Note:  Check your syllabus to see if you need to know how a pi bond is formed. If you are studying a UK-based syllabus and haven't got a copy of that syllabus, find out how to get one by following this link.

If you do need to know about the bonding in ethene in detail, follow this link as well.

Use the BACK button on your browser to return to this page.



The reactions of alkenes

Like any other hydrocarbons, alkenes burn in air or oxygen, but these reactions are unimportant. Alkenes are too valuable to waste in this way.

The important reactions all centre around the double bond. Typically, the pi bond breaks and the electrons from it are used to join the two carbon atoms to other things. Alkenes undergo addition reactions.

For example, using a general molecule X-Y . . .

The rather exposed electrons in the pi bond are particularly open to attack by things which carry some degree of positive charge. These are called electrophiles. If you explore the rest of the alkene menu, you will find lots of examples of this kind.


Note:  If you need to know about organic reaction mechanisms, it would be a good idea to read the page explaining the background to electrophilic addition before you start looking at individual cases from the alkenes menu.

In fact, if you are only really interested in mechanisms, then look at that page and then explore the rest of the electrophilic addition menu in the mechanisms section of this site.
